AC Motor Type: Induction/Asynchronous Country/Region of Manufacture: United States
Voltage: 4160 VAC Full Load Amps: 174
AC Frequency Rating: 60 Hz Current Type: AC
Actual Rated Input Voltage: 4160 AC Phase: Three Phase
Mounting Type: Base-Mounted Shaft Diameter: 3.5
Rated Load (HP): 1375 Brand: Louis Allis
Nominal Rated Input Voltage: 4160 V BC Category: Motors & Gear Reducers/AC Motors
Horsepower: 1375 Make: Louis Allis
Orig: 2016

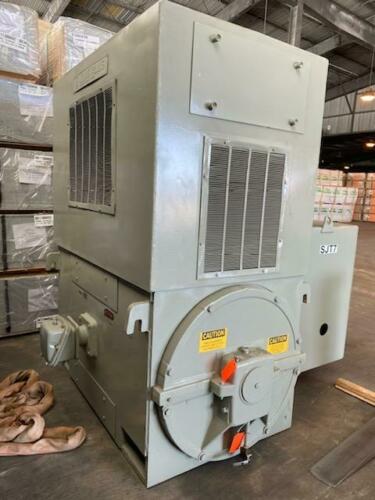

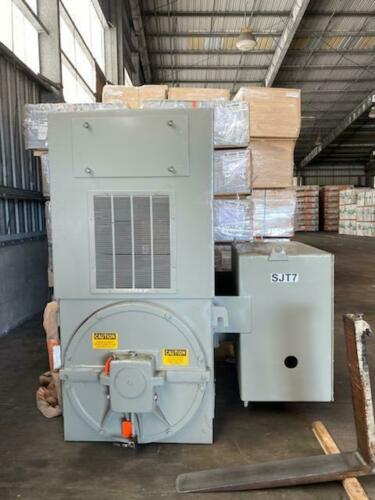

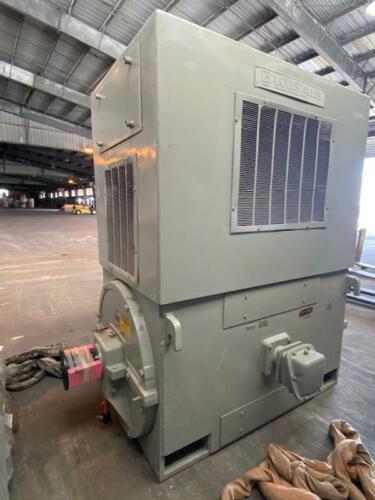

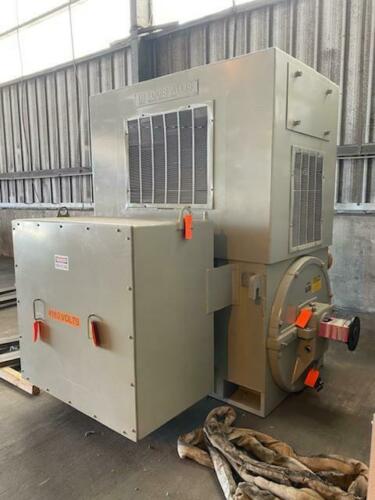

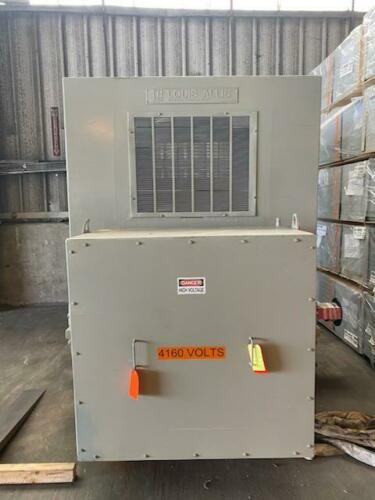

1375 HP Louis Allis AC Electric Motor
4160V, 174 Amps, Phase 3, 60Hz
3570 rpm
7310DS Frame
Refurbished with test report by a professional company - Detailed refurbishment report with pictures and measurements available.
Contact us for a copy of the report
Approx weight 13500 lbs
Approx Dimensions 5ft x 7ft x 9ft
Measurements per refurbishment report:
Bearing ID Shaft OD Clearance
DE 3.5065” 3.4990 " 0.0074
ODE 3.5069” 3.4996 " 0.0072
